microPAM utilities#
micoPAM console#
The microPAM software includes a basic menu that can interacted with from the PC, using either a terminal program or the following Python and R scripts.
Python script#
import serial
import serial.tools.list_ports
from datetime import datetime
def PC_time():
date_time=datetime.now()
print("Date and time is:", date_time)
def microPAM_showParameters():
s=serial.tools.list_ports.comports(True)
print(s[0].device)
with serial.Serial(s[0].device) as ser:
ser.reset_input_buffer
ser.write(b'?p\r')
for ii in range(5):
print(ser.readline().decode('utf-8').rstrip())
print()
def microPAM_syncTime():
s=serial.tools.list_ports.comports(True)
date_time=datetime.now()
dd=date_time.strftime('!d%Y-%m-%d\r')
tt=date_time.strftime('!t%H:%M:%S\r')
with serial.Serial(s[0].device) as ser:
ser.write(dd.encode())
str=ser.readline().decode('utf-8').rstrip()
print(str)
with serial.Serial(s[0].device) as ser:
ser.write(tt.encode())
print(ser.readline().decode('utf-8').rstrip())
def microPAM_setParameter(token,value):
s=serial.tools.list_ports.comports(True)
with serial.Serial(s[0].device) as ser:
data="!"+token+str(value)+"\r"
ser.write(data.encode())
print(ser.readline().decode('utf-8').rstrip())
def microPAM_readLines(value):
s=serial.tools.list_ports.comports(True)
with serial.Serial(s[0].device) as ser:
for ii in range(value):
print(ser.readline().decode('utf-8').rstrip())
def microPAM_command(value):
s=serial.tools.list_ports.comports(True)
with serial.Serial(s[0].device) as ser:
ser.write(value.encode())
Example of python based setup of microPAM#
PC_time()
microPAM_connected = 0 # change to 1 if microPAM is connected to USB
if microPAM_connected:
microPAM_showParameters()
microPAM_syncTime()
# microPAM_setParameter("f",44100)
# microPAM_setParameter("s",12)
# microPAM_setParameter("c",1)
microPAM_showParameters()
Date and time is: 2024-10-09 17:49:08.169651
Example of python based monitoring of microPAM#
if microPAM_connected:
microPAM_command("m") # switch on monitor
microPAM_readLines(10)
microPAM_command("m") # switch off monitor
if microPAM_connected:
microPAM_command("s") # start archiving
microPAM_readLines(5)
microPAM_command("e") # stop archiving
microPAM GUI#
#%%writefile microPAM_GUI.py
# uncomment prev line to save cell to file
# micoPAM GUI
# use this cell to test and develop GUI
# to compile "pyinstaller microPAM_GUI.py --noconfirm"
# will generate "dist/micoPAM_GUI/microPAM_GUI.exe"
# and "dist/micoPAM_GUI/_internal" with all required pyd/dll files
#
import tkinter as tk
import time
from datetime import datetime
import serial
import serial.tools.list_ports
class Window(tk.Frame):
def mEntry(self,txt,x,y,w,dx):
label = tk.Label(text=txt,font=("Helvetica", 18))
label.place(x=x-dx,y=y)
edit = tk.Entry(text="", fg="Black", font=("Helvetica", 18),width=w)
edit.place(x=x,y=y)
return edit
def mgetParam(self,ser,txt):
ser.write(txt.encode())
txt=ser.readline().decode('utf-8').rstrip()
ip=txt.find("=")
return txt[ip+2:]
def mputEntry(self,edit,txt):
edit.delete(0,tk.END)
edit.insert(0,txt)
def mUpdate(self,ser,edit,txt):
ser.write(txt.encode())
txt=ser.readline().decode('utf-8').rstrip()
ip=txt.find("=")
edit.delete(0,tk.END)
edit.insert(0,txt[ip+2:])
def mgetEntry(self,ser,str,edit):
data=str+edit.get()+"\r"
ser.write(data.encode())
def ndays(self,d,m,y):
def lpY(y): return (y%4==0) | ((y%100==0) & (y%400>0))
dom=[31,28,31,30,31,30,31,31,30,31,30]
#
# number of days since 1-1-1970
y1=y-1970
days=y1*365
for ii in range(y1):
if lpY(1970+ii): days +=1
#
m -= 1
for ii in range(m):
days += dom[ii]
if ii==1:
if lpY(y): days += 1
#
d -= 1
days += d
return days, (days+4)%7 # 1-1-70 was thursday 1-1-24 was monday
def nidays(self,days):
def lpY(y): return (y%4==0) | ((y%100==0) & (y%400>0))
dom=[31,28,31,30,31,30,31,31,30,31,30]
#
y1=0
while days>0:
if lpY(1970+y1):
days -=366
else:
days -= 365
y1 +=1
#
if y1>0:
y1 -= 1
if days<=0:
if lpY(1970+y1):
days += 366
else:
days += 365
#
days += 1
ii = 0
while days >=0:
if (ii==1) & lpY(1970+y1): days -=1
days -= dom[ii]
ii += 1
ii=ii-1
days += dom[ii]
m = ii
return (1970+y1,m+1,days)
def __init__(self, master=None):
tk.Frame.__init__(self, master)
self.master = master
# widget can take all window
self.pack(fill=tk.BOTH, expand=1)
label1 = tk.Label(text="PC:",font=("Helvetica", 18))
label1.place(x=100,y=10)
self.pcClocklabel = tk.Label(text="", fg="Red", font=("Helvetica", 18))
self.pcClocklabel.place(x=160,y=10)
self.update_clock()
label2 = tk.Label(text="MCU:",font=("Helvetica", 18))
label2.place(x=80,y=60)
self.mcuClocklabel = tk.Label(text="", fg="Black", font=("Helvetica", 18))
self.mcuClocklabel.place(x=160,y=60)
xo=120
yo=110
ii=0
self.fsamp_edit = self.mEntry("fsamp:",xo,yo+ii*40,10,80); ii+=1
self.proc_edit = self.mEntry("proc:",xo,yo+ii*40,5,80); ii+=1
self.shift_edit = self.mEntry("shift:",xo,yo+ii*40,5,80); ii+=1
self.again_edit = self.mEntry("again:",xo,yo+ii*40,5,80); ii+=1
xo=350
yo=110
ii=0
self.t_acq_edit = self.mEntry("t_acq:",xo,yo+ii*40,5,80); ii+=1
self.t_on_edit = self.mEntry("t_on:",xo,yo+ii*40,5,80); ii+=1
self.t_rep_edit = self.mEntry("t_rep:",xo,yo+ii*40,5,80); ii+=1
ii=0
xo += 160
self.h_1_edit = self.mEntry("h_1:",xo,yo+ii*40,5,80); ii+=1
self.h_2_edit = self.mEntry("h_2:",xo,yo+ii*40,5,80); ii+=1
self.h_3_edit = self.mEntry("h_3:",xo,yo+ii*40,5,80); ii+=1
self.h_4_edit = self.mEntry("h_4:",xo,yo+ii*40,5,80); ii+=1
yo += 40
self.d_start_edit = self.mEntry("d_start:",xo-320,yo+ii*40,3,90);
self.m_start_edit = self.mEntry("m_start:",xo-160,yo+ii*40,3,90);
self.y_start_edit = self.mEntry("y_start:",xo,yo+ii*40,5,90); ii+=1
self.d_on_edit = self.mEntry("d_on:",xo,yo+ii*40,5,80); ii+=1
self.d_rep_edit = self.mEntry("d_rep:",xo,yo+ii*40,5,80); ii+=1
# create buttons
xm=600
exitButton = tk.Button(self, text="Exit ", command=self.clickExitButton, font=("Helvetica", 18))
exitButton.place(x=xm, y=10)
loadButton = tk.Button(self, text="Load", command=self.clickLoadButton, font=("Helvetica", 18))
loadButton.place(x=xm, y=80)
saveButton = tk.Button(self, text="Save", command=self.clickSaveButton, font=("Helvetica", 18))
saveButton.place(x=xm, y=150)
storeButton = tk.Button(self, text="Store", command=self.clickStoreButton, font=("Helvetica", 18))
storeButton.place(x=xm, y=220)
syncButton = tk.Button(self, text="Sync", command=self.clickSyncButton, font=("Helvetica", 18))
syncButton.place(x=xm, y=310)
self.storeButton=storeButton
#
date_time=datetime.now()
self.mputEntry(self.d_start_edit,str(date_time.day))
self.mputEntry(self.m_start_edit,str(date_time.month))
self.mputEntry(self.y_start_edit,str(date_time.year))
s=serial.tools.list_ports.comports(True)
with serial.Serial(s[0].device) as ser:
ser.reset_input_buffer()
ser.reset_output_buffer()
def clickExitButton(self):
self.master.destroy()
def clickLoadButton(self):
s=serial.tools.list_ports.comports(True)
if len(s)==0:
return
with serial.Serial(s[0].device) as ser:
ser.reset_input_buffer()
# stop acquisition
ser.write(b'e\r')
txt=ser.readline().decode('utf-8').rstrip()
# stop monitor
ser.write(b':m0\r')
txt=ser.readline().decode('utf-8').rstrip()
ser.reset_input_buffer()
#
# load now data from device
ser.write(b'?d\r')
txt1=ser.readline().decode('utf-8').rstrip()
ser.write(b'?t\r')
txt2=ser.readline().decode('utf-8').rstrip()
ip1=txt1.find("=")
ip2=txt2.find("=")
self.mcuClocklabel.configure(text=txt1[ip1+2:]+txt2[ip2+1:])
#
self.mUpdate(ser,self.t_acq_edit,"?a")
self.mUpdate(ser,self.t_on_edit, "?o")
self.mUpdate(ser,self.t_rep_edit,"?r")
#
self.mUpdate(ser,self.h_1_edit,"?1")
self.mUpdate(ser,self.h_2_edit,"?2")
self.mUpdate(ser,self.h_3_edit,"?3")
self.mUpdate(ser,self.h_4_edit,"?4")
#
self.mUpdate(ser,self.d_on_edit,"?5")
self.mUpdate(ser,self.d_rep_edit,"?6")
#
self.mUpdate(ser,self.fsamp_edit,"?f")
self.mUpdate(ser,self.proc_edit, "?c")
self.mUpdate(ser,self.shift_edit,"?s")
self.mUpdate(ser,self.again_edit,"?g")
days=int(self.mgetParam(ser,"?0"))
print('get',days)
year,month,day=self.nidays(days+20000)
self.mputEntry(self.d_start_edit,str(day))
self.mputEntry(self.m_start_edit,str(month))
self.mputEntry(self.y_start_edit,str(year))
self.storeButton["state"]=tk.DISABLED
def clickSaveButton(self):
dx=self.d_start_edit.get()
mx=self.m_start_edit.get()
yx=self.y_start_edit.get()
days,dow=self.ndays(int(dx),int(mx),int(yx))
#
s=serial.tools.list_ports.comports(True)
with serial.Serial(s[0].device) as ser:
ser.read_all()
self.mgetEntry(ser,'!a',self.t_acq_edit)
self.mgetEntry(ser,'!o',self.t_on_edit)
self.mgetEntry(ser,'!r',self.t_rep_edit)
self.mgetEntry(ser,'!1',self.h_1_edit)
self.mgetEntry(ser,'!2',self.h_2_edit)
self.mgetEntry(ser,'!3',self.h_3_edit)
self.mgetEntry(ser,'!4',self.h_4_edit)
self.mgetEntry(ser,'!5',self.d_on_edit)
self.mgetEntry(ser,'!6',self.d_rep_edit)
#
self.mgetEntry(ser,'!f',self.fsamp_edit)
self.mgetEntry(ser,'!c',self.proc_edit)
self.mgetEntry(ser,'!s',self.shift_edit)
self.mgetEntry(ser,'!g',self.again_edit)
#
data="!0"+str(days-20000)+"\r"
print('put', data)
ser.write(data.encode())
#
ser.read_all()
with open("config.txt","w") as f:
f.write("a="+self.t_acq_edit.get()+"; t_acq\n")
f.write("o="+self.t_on_edit.get()+"; t_on\n")
f.write("r="+self.t_rep_edit.get()+"; t_rep\n")
f.write("1="+self.h_1_edit.get()+"; h_1\n")
f.write("2="+self.h_2_edit.get()+"; h_2\n")
f.write("3="+self.h_3_edit.get()+"; h_3\n")
f.write("4="+self.h_4_edit.get()+"; h_4\n")
f.write("5="+self.d_on_edit.get()+"; d_on\n")
f.write("6="+self.d_rep_edit.get()+"; d_rep\n")
f.write("f="+self.fsamp_edit.get()+"; fsamp\n")
f.write("c="+self.proc_edit.get()+"; proc\n")
f.write("s="+self.shift_edit.get()+"; shift\n")
f.write("g="+self.again_edit.get()+"; again\n")
f.write("0="+str(days-20000)+"; d_0\n")
self.storeButton["state"]=tk.NORMAL
def clickStoreButton(self):
s=serial.tools.list_ports.comports(True)
with serial.Serial(s[0].device) as ser:
ser.read_all()
ser.write("!w1\r".encode())
time.sleep(0.1)
txt=ser.readline().decode('utf-8').rstrip()
#
ser.write(":w".encode())
time.sleep(0.1)
txt=ser.readline().decode('utf-8').rstrip()
txt=ser.readline().decode('utf-8').rstrip()
print(txt)
def clickSyncButton(self):
s=serial.tools.list_ports.comports(True)
date_time=datetime.now()
dd=date_time.strftime("!d%Y-%m-%d\r")
tt=date_time.strftime("!t%H:%M:%S\r")
with serial.Serial(s[0].device) as ser:
ser.write(tt.encode())
with serial.Serial(s[0].device) as ser:
ser.write(dd.encode())
with serial.Serial(s[0].device) as ser:
ser.write(b':c')
def update_clock(self):
now = time.strftime("%Y-%m-%d %H:%M:%S")
self.pcClocklabel.configure(text=now)
self.after(1000, self.update_clock)
root = tk.Tk()
app = Window(root)
root.wm_title("MicroPAM V3 (WMXZ)")
root.geometry("700x500")
microPAM_connected = 1 # change to 1 if microPAM is connected to USB
if microPAM_connected:
root.after(1000, app.update_clock)
root.mainloop()
---------------------------------------------------------------------------
IndexError Traceback (most recent call last)
Cell In[5], line 300
297 self.after(1000, self.update_clock)
299 root = tk.Tk()
--> 300 app = Window(root)
301 root.wm_title("MicroPAM V3 (WMXZ)")
302 root.geometry("700x500")
Cell In[5], line 161, in Window.__init__(self, master)
158 self.mputEntry(self.y_start_edit,str(date_time.year))
160 s=serial.tools.list_ports.comports(True)
--> 161 with serial.Serial(s[0].device) as ser:
162 ser.reset_input_buffer()
163 ser.reset_output_buffer()
IndexError: list index out of range
R scripts#
The following functions allow the interaction with the microPAM using R
library('serial')
listParameters <- function()
{
ser <- listPorts()
com <- serialConnection(name="microPAM",port=ser,
buffering='line',
translation='cr')
if(isOpen(com)==FALSE) open(com)
write.serialConnection(com,"?p\r\n")
flush(com)
Sys.sleep(0.1)
ret<-read.serialConnection(com)
close(com)
cat(c(ret,"\n"))
}
syncTime <- function()
{
ser <- listPorts()
com <- serialConnection(name="microPAM",port=ser,
buffering='line',
translation='cr')
if(isOpen(com)==FALSE) open(com)
now=Sys.time()
dd=format(now,"!d%Y-%m-%d\r\n")
write.serialConnection(com,dd)
flush(com)
Sys.sleep(0.1)
ret<-read.serialConnection(com)
cat(ret)
tt=format(now,"!t%H-%M-%S\r\n")
write.serialConnection(com,tt)
flush(com)
Sys.sleep(0.1)
ret<-read.serialConnection(com)
cat(c(ret,"\n"))
close(com)
}
setParameter <- function(token,value)
{
ser <- listPorts()
com <- serialConnection(name="microPAM",port=ser,
buffering='line',
translation='cr')
if(isOpen(com)==FALSE) open(com)
uu=sprintf("!%s%d\r\n",token,value)
write.serialConnection(com,uu)
flush(com)
Sys.sleep(0.1)
ret<-read.serialConnection(com)
cat(c(ret,"\n"))
close(com)
}
doCommand <- function(token)
{
ser <- listPorts()
com <- serialConnection(name="microPAM",port=ser,
buffering='line',
translation='cr')
if(isOpen(com)==FALSE) open(com)
uu=sprintf("%s\r\n",token)
write.serialConnection(com,uu)
flush(com)
close(com)
}
monitor <- function(num)
{
ser <- listPorts()
com <- serialConnection(name="microPAM",port=ser,
buffering='line',
translation='lf')
if(isOpen(com)==FALSE) open(com)
ret<-read.serialConnection(com)
for (ii in 1:num)
{ Sys.sleep(1)
ret<-read.serialConnection(com)
cat(c(ret,'\n'))
}
close(com)
}
basic audio test (wav file generation) script#
import numpy as np
import wavio
rate = 22050 # samples per second
T = 3 # sample duration (seconds)
f = 440.0 # sound frequency (Hz)
t = np.linspace(0, T, T*rate, endpoint=False)
sig = np.sin(2 * np.pi * f * t)
wavio.write("sine24.wav", sig, rate, sampwidth=3) # 24 bit data (sampwidth=3)
Elliptical filters#
Low-pass filter with elliptical (Cauer) filter for very low (< 1kHz) corner frequencies
first decimate data to about 2400 Hz
estimate biquad filter coefficients with python script
apply 3 biquad filter
import numpy as np
from scipy.signal import ellip, sosfreqz
import scipy.signal as sig
import matplotlib.pyplot as plt
Fs = 2400
x = sig.ellip(6, 1, 60, [300 / (Fs / 2)], output='sos')
print(x)

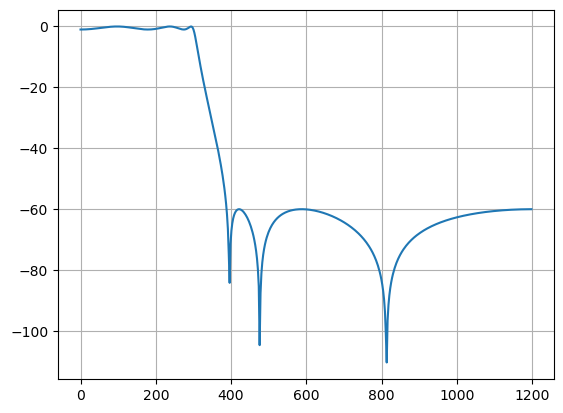

freqs, resps = sig.sosfreqz(x, fs = Fs)
fig = plt.figure()
ax = fig.add_subplot(111)
ax.grid()
ax.plot(freqs, 20 * np.log10(np.abs(resps)))
plt.show()
[[ 0.00454991 0.00480905 0.00454991 1. -1.54273107 0.64191613]
[ 1. -0.63758644 1. 1. -1.43156463 0.80165859]
[ 1. -1.02047284 1. 1. -1.37624928 0.94360981]]
